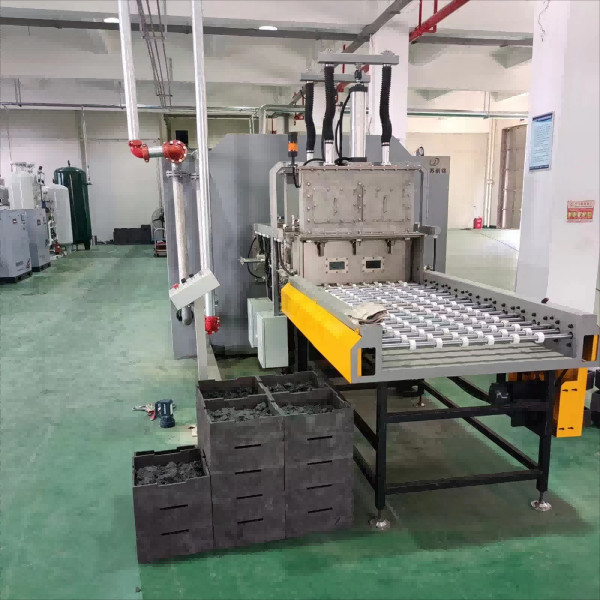

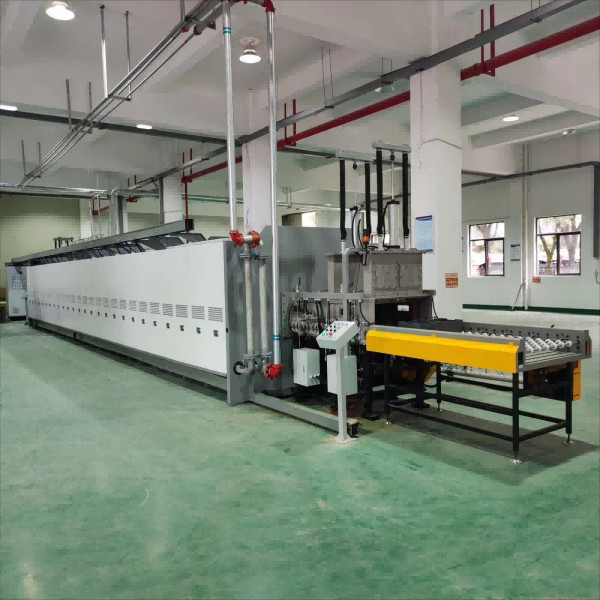

High Temperature Silicon carbon anode Carbonization RHK Roller Hearth Furnace
Silicon carbon anode material can be said to be the most popular anode material now. It has a very high capacity density, and its application can greatly increase the overall capacity density of a single battery.
The carbonization temperature of the silicon-carbon anode electrode is about 800 ℃. At the process temperature, the pilot line can choose an atmosphere-protected push plate kiln or a roller kiln. When there are production requirements, the designed production capacity of the roller kiln will be greater than that of the push plate kiln due to its structural principle.
Lithium battery materials(anode and cathode material), advanced ceramic materials, high-purity alumina powder, catalysts, magnetic materials, rare earth materials
| MAX temperature | 1050℃ |
| Working temperature | 1000℃ |
| Roller material | silicon carbide /alumina ceramics. |
| Chamber size | customized based on technical requirements |
| Arrangement | 6 columns and 1 layers,4 columns and 1 layer,3columns and 1 layers, etc |
| Heating element | Silicon carbide rod or high-temperature resistance wire |
| Heating method | horizontal heating up and down |
1. Built with new refractory materials, arched structure on top, which has a long service life and uniform exhaust.
2. with excellent thermal efficiency, and the uniformity of temperature field can reach ±5°C.
3. Special intake and exhaust structure design can ensure unobstructed exhaust during glue removal.
4. Equipped with partition beams inside the Chamber, which can adjust and control the atmosphere and supply in each temperature zone.
5. Can be completely customized according to the actual process and requirements of customers.
We will well pack the goods based on the kinds of furnaces and customer's requirements.
